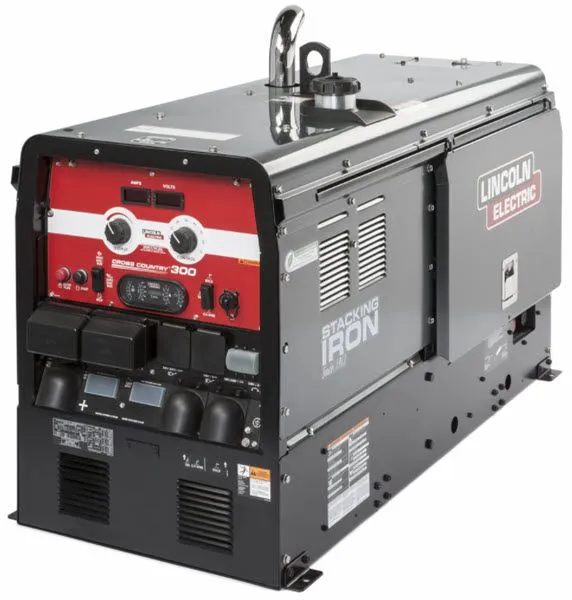

Lincoln® Cross Country® 300 CC/CV (Kubota) Diesel Welder K4166-1

The Lincoln® Cross Country® 300 CC/CV is a 300 amp, multi-process diesel engine welder that is specifically designed for pipeline welding. The stick arc has been fine tuned by professional pipeline welders to provide unbeatable results while welding with E6010 and E7018 stick electrodes. Weld puddle performance for root, fill and cap passes outshines any welder in its class. Simple, intuitive weld controls allow you to switch quickly and easily between stick, DC TIG and CV (wire feed) modes.

The Cross Country also produces up to 11,500 peak watts of single-phase AC auxiliary power AND up to 12,500 peak watts of three-phase AC auxiliary power. Its compact size makes it ideal for hauling in the back of your pickup truck. The welder's low profile ensures that you'll have a clear view of the road out of your back window. The Kubota® V1505 four-cylinder diesel engine is EPA Tier 4F compliant and produces 22 horsepower at 1,800 RPM.



Processes

Stick (SMAW)

MIG (GMAW)

Flux-cored (FCAW)

DC TIG (GTAW)

Air carbon arc (CAC-A) Rated: 1/4-inch (6.5 mm) carbons

Applications
Cross country pipe
Process piping
Pipe repair
Maintenance jobs

Features:

It is All About the Arc - Out on the pipeline spread, your job depends on whether each and every weld passes inspection. The Cross Country 300 stick arc was tuned by pipeline welders for pipeline welders. That means puddle performance is excellent for root, fill and cap passes and designed for cellulosic or low hydrogen stick electrodes.

The Size is Right - On remote job sites, you have to carry everything with you. This puts space on your rig at a premium. The Cross Country 300 is the most compact engine-driven pipe welder in its class and easily fits on most trucks. That means you get a small footprint, short height for great visibility through the truck's rear window and lower weight to go easier on your truck's suspension.

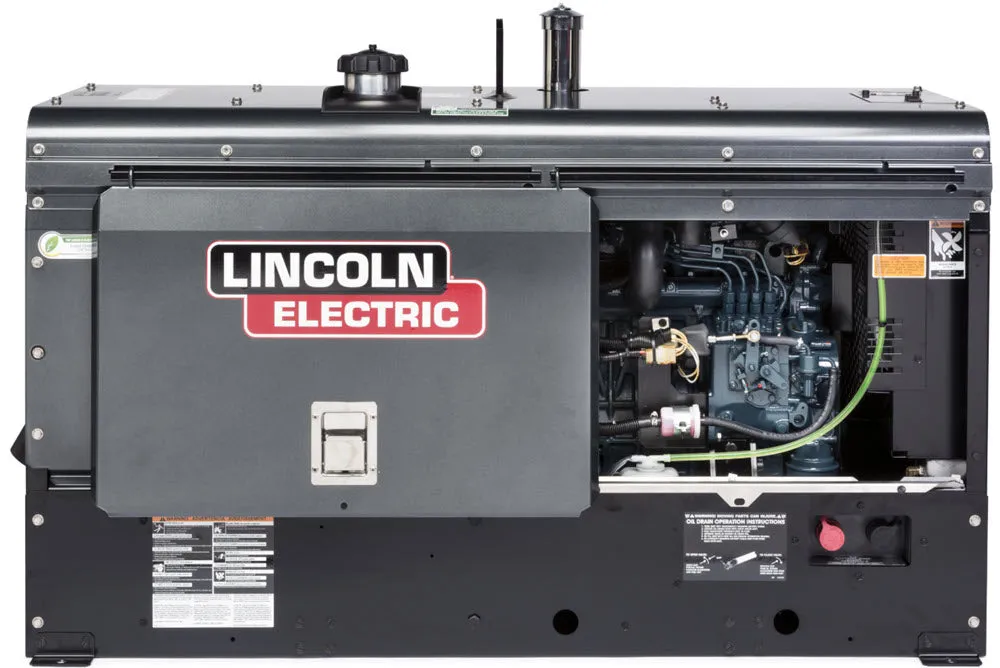

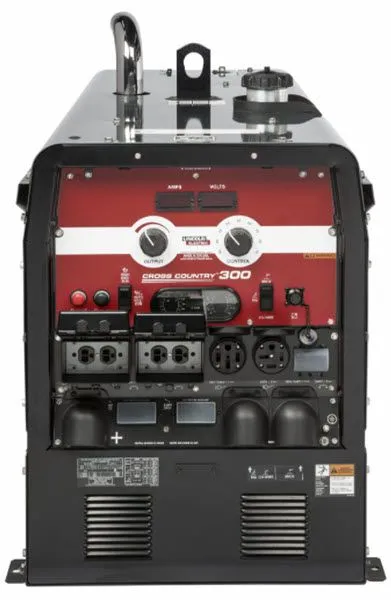

Easy To Use - It's easy to get started with the Cross Country 300. Dual continuous controls designed for pipeline welding help you tune the arc for the pipe, pass, position, conditions and more. Fewer controls improve simplicity and reliability. Service access for routine maintenance is easy, even on the truck, with sliding engine access doors on each side of the machine. Battery jumper studs are also conveniently located. Digital meters and dashboard gauges monitor key functions. The powder-coated steel enclosure and polished stainless steel exhaust stack will look great on your rig and will stand up to years of cross country travel.

Flexible - When your project calls for wire or TIG welding, you'll be ready. The Cross Country 300 supports DC stick, wire and TIG processes and easily connects to Lincoln Electric wire feeders. The powerful generator produces plenty of power for grinders, pumps and travel trailers - up to 11kW continuous three phase power. An engine block heater, standard equipment on the Cross Country 300, enables operation in cold weather environments.

Designed to operate over 10,000 hours before the first basic overhaul. Backed by worldwide support and service.

Quiet at only 72.1 dba (97 Lwa) at 23 ft at maximum output.

Specs



Comes complete with

Cross Country® 300 welder with Kubota® V1505 diesel engine

120V block heater
